    L02913

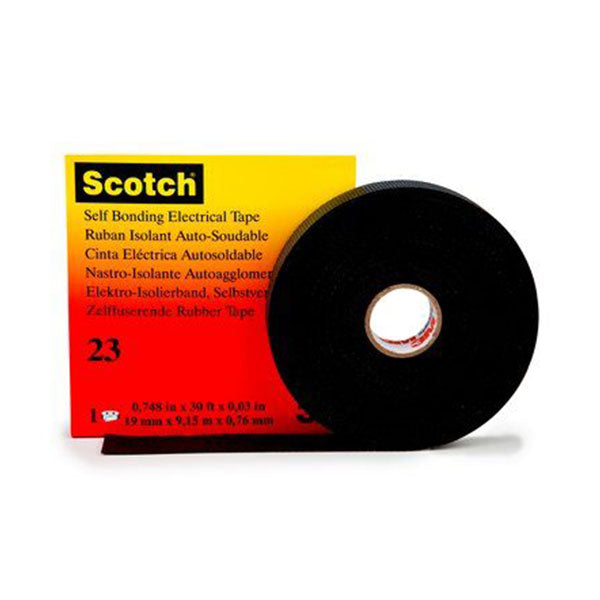

    3M SCO3M15F 23 RUBBER SPLICING TAPE 3/4 15FT
    ស្តុត

    We have 2 in stock.

    Details

    • Rubber resin provides excellent adherence to irregular surfaces
    • Primary electrical insulation for splicing cable from 600V to 69 kV on all solid dielectric cables
    • Suitable for jacketing high-voltage splices and terminations
    • Available in narrow and wide widths (0.75 in.–2 in.)
    • Temperature rated for continuous adhesion to 194°F (90°C)
    • Withstands temperatures up to 194 degrees F (90 degrees C)
    • Special polyester liner
    • ASTM Approved & RoHS 2002/65/EC Compliant

    High and low voltage insulation, self-fusing rubber tape. Primary electrical insulation for splicing all solid dielectric cables through 69kV

    Scotch® Rubber Splicing Tape 23 has greater physical and electrical properties that are unaffected by the degree of stretch. This tape is highly resistant to split, crack and flag when exposed to indoor or outdoor environments. It is designed to splice and terminate cables whose emergency overload temperatures can reach 266 degrees F (130 degrees C). This self-fusing ethylene propylene rubber, high-insulating voltage tape has a snakeskin liner that is easily removed as the tape is applied. It is compatible with synthetic cables insulations and paper insulations cables. ASTM Approved & RoHS 2002/65/EC Compliant.

    Specifications

    Adhesion to Steel
    N/A
    Adhesive Material
    Rubber Resin
    Agency Approvals
    ASTM D-4388 type 1, 2 & 3 | HH-I-3825B
    Application
    Electrical Maintenance, Insulation
    Backing Material
    Ethylene Propylene Rubber, Polyester lining
    Backing Thickness (Metric)
    0.76 mm
    Brand
    Scotch®
    Breaking Strength (Imperial)
    8 lb/in
    Color Family
    Black
    Dielectric Strength (V/mil)
    800, 800 V/mil
    Elongation
    10 %, 1000 %
    Elongation at Break
    1000%
    Emergency Overload Temperature (Celsius)
    130°C
    Emergency Overload Temperature (Fahrenheit)
    266°F
    Family
    Scotch® Rubber Splicing Tape 23
    High Temperature Rating
    194°F (90°C)
    Insulated
    Yes
    Insulation Resistance
    > 10^6 megohms
    Liner/Linerless
    Liner
    Material
    EPR with Liner
    Maximum Operating Temperature (Celsius)
    90 Degree Celsius
    Maximum Operating Temperature (Fahrenheit)
    194 Degree Fahrenheit
    National Stock Number
    5970011827761
    Operating Temperature (Celsius)
    Up to 90 °C
    Operating Temperature (Fahrenheit)
    Up to 194 °F
    Overall Length (Imperial)
    20 ft, 30 ft
    Overall Length (Metric)
    9.1 m, 9.15 m
    Overall Thickness (Imperial)
    30 mil
    Overall Thickness (Metric)
    0.76 mm
    Overall Width (Imperial)
    0.75 in, 1 in, 1.5 in, 2 in
    Overall Width (Metric)
    19 mm, 25.4 mm, 38 mm, 50.8 mm
    Product Color
    Black
    Product Form
    Roll
    Product Markets
    Electrical Construction, Electrical MRO, Power Distribution
    Product Type
    Rubber and Splicing Tapes, Rubber Tapes
    RoHS 2011/65/EU Compliant
    Yes
    RoHS EU Comments
    RoHS 2011/65/EU compliant without exemption
    *Important RoHS information
    Rolls per Carton
    1
    Rolls per Case
    16, 20, 32, 40
    Self-extinguishing
    No
    Self-sticking
    Yes
    Shelf Life
    5 Year
    Shelf Life in Months (From Date of Manufacture)
    60
    Solution for
    Wireless Network: Infrastructure Accessories, Wireless Network: Weatherproofing
    Specifications
    ASTM D-4388 Type 1, 2 & 3
    Specifications Met
    ASTM D-4388 Type 1, 2 & 3
    Suitable for High Voltage
    Yes
    Tape Color
    Black
    Tape Grade
    Premium, Professional
    Tape Length (Metric)
    9.1 m
    Tape Type
    Professional Grade Rubber Tape
    Tape Width (Imperial)
    0.75 in, 1 in, 2 in
    Tape Width (Metric)
    19.1 mm, 25.4 mm, 50.8 mm
    TDS Required
    Yes
    Tensile Strength (Imperial)
    8 Pound-Force Per Square Inch
    Tensile Strength (Metric)
    55 kPa
    Tensile Strength lb/in (N/100 mm)
    8 (140)
    Total Tape Thickness without Liner (Metric)
    0.76 mm
    Total Thickness
    0.76 mm
    UV Resistant
    No
    Voltage
    69 kV
    Voltage Application
    All voltage classes
    Voltage Rating
    69 kV
    Vulcanizing
    No, Yes
